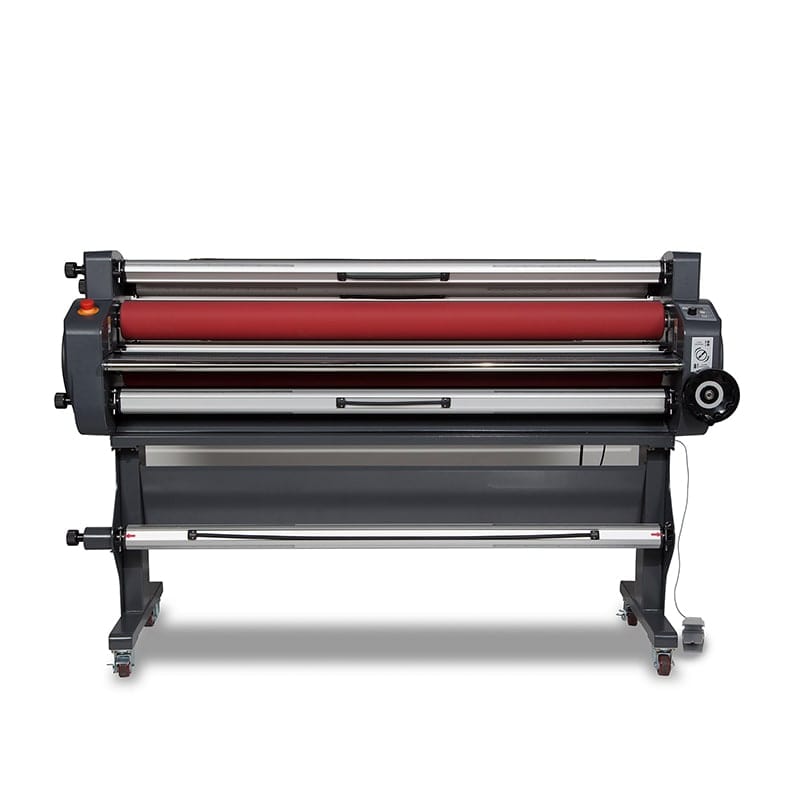

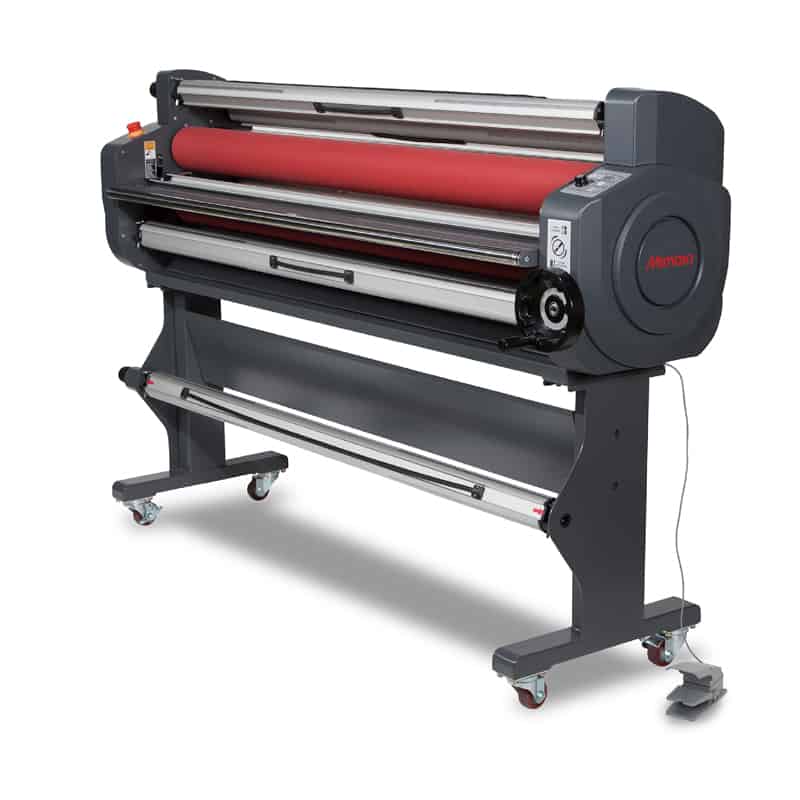

Mimaki LA-160W Heat Assisted Laminator
Sign in to see priceThe Mimaki LA-160W is a heat-assisted device that improves laminate film adhesion, particularly to surfaces printed with UV-LED ink, and reduces the potential for silvering effect created by pressure sensitive laminates. This heat assisted laminator reaches a maximum temperature of 140°F which improves overlaminate film adhesion.
Features:
- 62.2 in maximum width
- Fast throughput speeds and easy to use
- Max speed 295 linear inches/minute
- Maximum temperature of 140°F
- Easy access to pressure handle and foot pedal
- Safety design for operator protection
- Take-up reel makes it easy for one person to operate the entire process
Mimaki LA-160W Heat Assisted Laminator Spec Sheet
Applications:
- Laminating of digitally printed films.
- Mounting of pressure sensitive adhesive films to rigid substrates.
| Mimaki LA-160W Specifications | |
| Maximum Processing Width | 62.2 in (1,580 mm) |
| Roller Diameter | 4.72 in (120 mm) |
| Processing Thickness | 1.38 in (35 mm max.) |
| Processing Temperature | From room temperature to 140 °F (60 °C) |
| Processing Speed | 0 to 295.3 in min (0 to 7500 mm/min) |
| Core Diameter | 3 in |
| Power | 120V | EU: 230V | other: 100V |
| Rated Current | 14A | EU: 8A | other: 15A |
| Power Consumption | 1800W or less |
| Preheating Time | About 30 minutes |
| Pedal Switch | One |
| Attachment Shaft (with measure scale) | 3 in x 5 pcs |
| Dimensions | 78.7 in x 21.7 in x 50.4 in (2,000 mm x 550 mm x 1,280 mm) |
| Weight | 451.9 lbs (205 kg) |
| Shipping Dimensions | 84 in x 26 in x 29 in |
| Shipping Weight | 612 lbs |
| Shipping Crate/Pallet | Shipped in a crate on a pallet |
| Warranty | One Year Trouble-free Warranty |
| Support | One year complimentary Gold Support |
*Not intended for use with eco-solvent inks.
Overview
The Mimaki LA-160W is a heat-assisted device that improves laminate film adhesion, particularly to surfaces printed with UV-LED ink, and reduces the potential for silvering effect created by pressure sensitive laminates. This heat assisted laminator reaches a maximum temperature of 140°F which improves overlaminate film adhesion.
Features:
- 62.2 in maximum width
- Fast throughput speeds and easy to use
- Max speed 295 linear inches/minute
- Maximum temperature of 140°F
- Easy access to pressure handle and foot pedal
- Safety design for operator protection
- Take-up reel makes it easy for one person to operate the entire process
Mimaki LA-160W Heat Assisted Laminator Spec Sheet
Applications
Applications:
- Laminating of digitally printed films.
- Mounting of pressure sensitive adhesive films to rigid substrates.
Specifications
| Mimaki LA-160W Specifications | |
| Maximum Processing Width | 62.2 in (1,580 mm) |
| Roller Diameter | 4.72 in (120 mm) |
| Processing Thickness | 1.38 in (35 mm max.) |
| Processing Temperature | From room temperature to 140 °F (60 °C) |
| Processing Speed | 0 to 295.3 in min (0 to 7500 mm/min) |
| Core Diameter | 3 in |
| Power | 120V | EU: 230V | other: 100V |
| Rated Current | 14A | EU: 8A | other: 15A |
| Power Consumption | 1800W or less |
| Preheating Time | About 30 minutes |
| Pedal Switch | One |
| Attachment Shaft (with measure scale) | 3 in x 5 pcs |
| Dimensions | 78.7 in x 21.7 in x 50.4 in (2,000 mm x 550 mm x 1,280 mm) |
| Weight | 451.9 lbs (205 kg) |
| Shipping Dimensions | 84 in x 26 in x 29 in |
| Shipping Weight | 612 lbs |
| Shipping Crate/Pallet | Shipped in a crate on a pallet |
| Warranty | One Year Trouble-free Warranty |
| Support | One year complimentary Gold Support |
*Not intended for use with eco-solvent inks.
